SKU:64626970

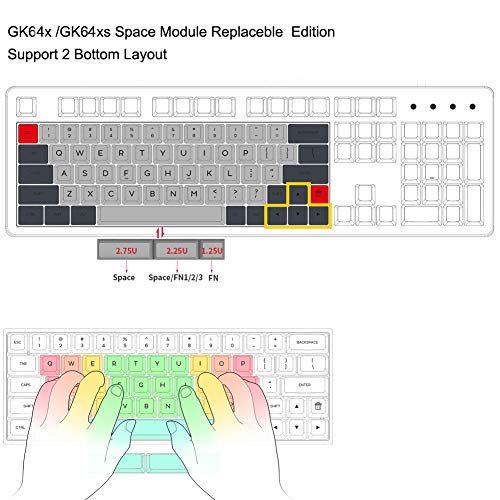

Details GK64X is wired edition which is upgraded for GK64.PCB is black high quality.GK64XS is bluetooth edition upgraded for GK64s,battery is 1900mah.Bluetooth edition support wired and bluetooth both. The one sold in this link is replacable plate which support 6.25u space as well as 2.25u 2.75u split space.The space is screwed to case directly.So if you want to replace normal GH60 case,you need to replace a non -replacable GH60 size plate is ok. The stabilizers is produced by Gateron factory which is better than before.For linear switches,please unistall the stabilizer and clip it to get better tactile feeling.If clicky switches,can just keep the status.. GK64x /GK64xs adds insert pin for underglow RGB strip now. The new plastic case is ABS amoulded by Zealio factory which is higher quality and looks better than before. Pls note: This pcb is fully programmable,however Fn sits at the right of bottom row and place can't change. The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB. PCB has switches RGB presoldered,it's under per switch.There is no underglow RGB presoldered. PCB is programmable with the software GK6x Plus (Can download on official website)jikedingzhi dot com
Package IncludedPlastic Case + Feet + Stabilizers + Hotswap GK64xs Type C PCB + Plate + Cable + Removal Tool + Space Module+1900mah Battery
Pls noteGK64xs is bluetooth kit.The PCB is fully programmable with GK software,the Fn key is the last key at the bottom and can't change place.
This kit support 6.25u space and split double space.This plate is screwed to case directly.So if you want to replace normal GH60 case,you need to replace a non -replacable GH60 size plate is ok.
PCB has RGB presoldered,it's under per switch.This kit need to use Cherry MX switches and clones,optical switches is not supported
There is no switches in the kit,you can order Cherry Gateron Kailh SMD Box switches etc yourself.Just put in switches in PCB is ok,no need soldering again.3 pin 5 pin both are ok
If you want to pull PCB off the case,pls see detail google link to see the video at first.The PCB and case is fit very perfectly which is hard to get PCB out.If you don't get PCB off,USB port won't break.If the USB port is broken after disassembly,please contact custom service for replacement and don't return it with quality reason anymore.
I recently got into custom mechanical keyboards by watching too many YouTube videos.I wanted to start off and build my own without spending a huge amount of money. I bought this case and pcb because it was a small form factor but did have the extra side keys and the arrow keys which I absolutely require for my use.I'm going to use some NovelKey Cream linear switches in this board with a PBT keycap set that I also purchased on Amazon.Pros-------------InexpensiveHotswap switch sockets are greatCase, while plastic is pretty nicePCB seems well made and includes RGB lights on each switchStabilizers came pre-lubed and they are solid - don't move aroundCons------------Case is plastic and sounds a little hollow when typing - I will be adding some sound deadener / foam in between the PCB and the case in order to try to make it sound better
